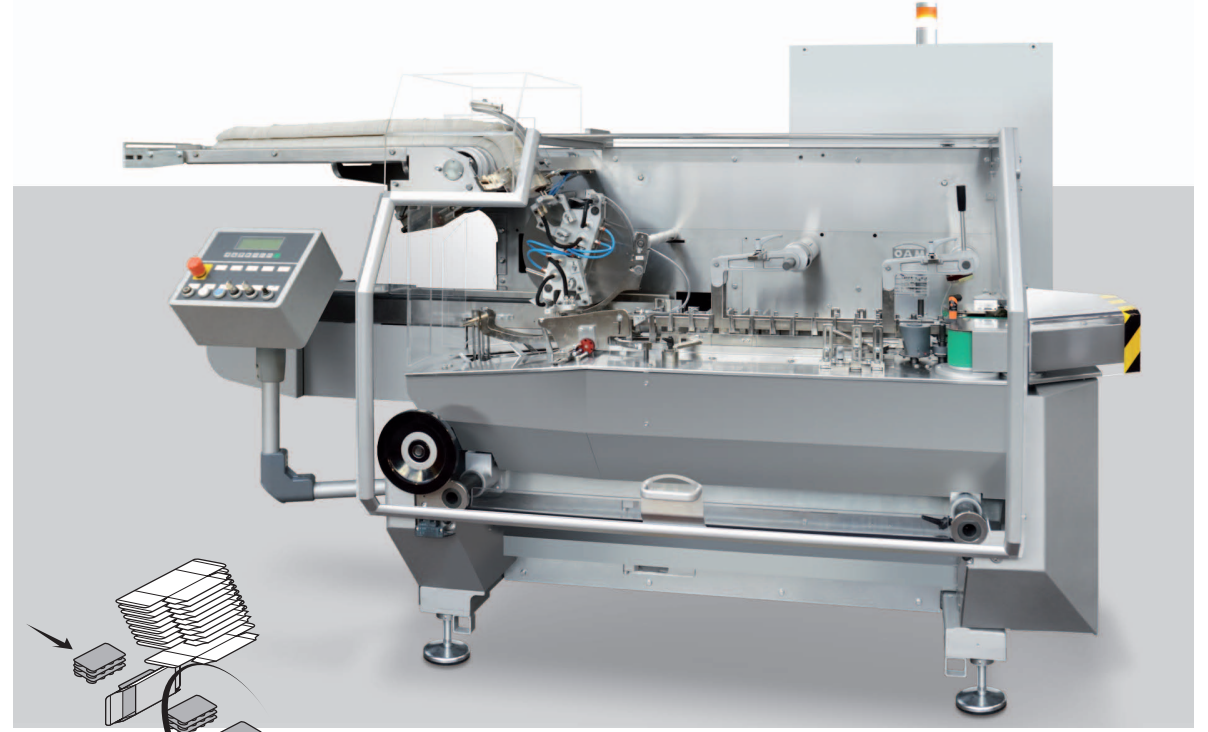

PMX Intermittent motion horizontal cartoner
TECHNICAL DATA:
• Mechanical speed STROKES/1’ 25÷150 25÷110 • Motors KW 1.12 1.12 • Power absorption KW 1.75 1.75 • (Hot-melt + 3.9)(Hot-melt + 3.9) • Air consumption Nl/1’ 16.9 16.9 • Air pressure bar 5÷6 5÷6 • Gross weight kg ~1400 ~1400 • Net weight kg ~1230 ~1230

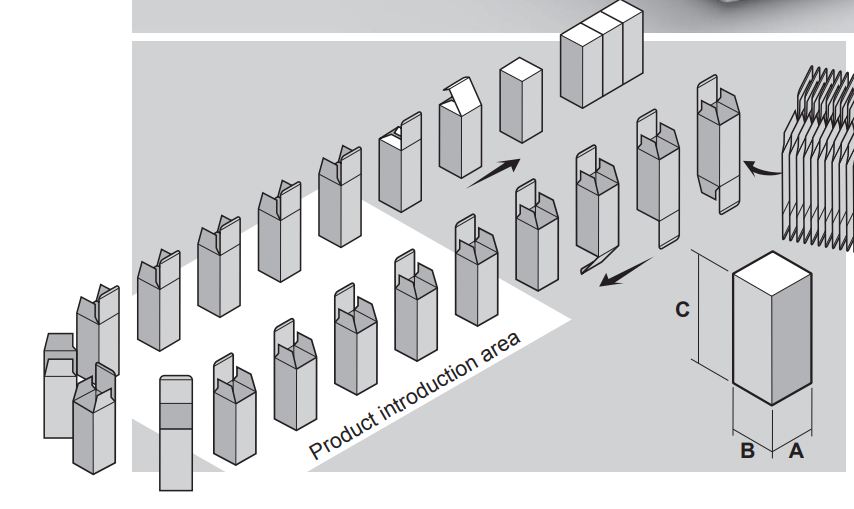

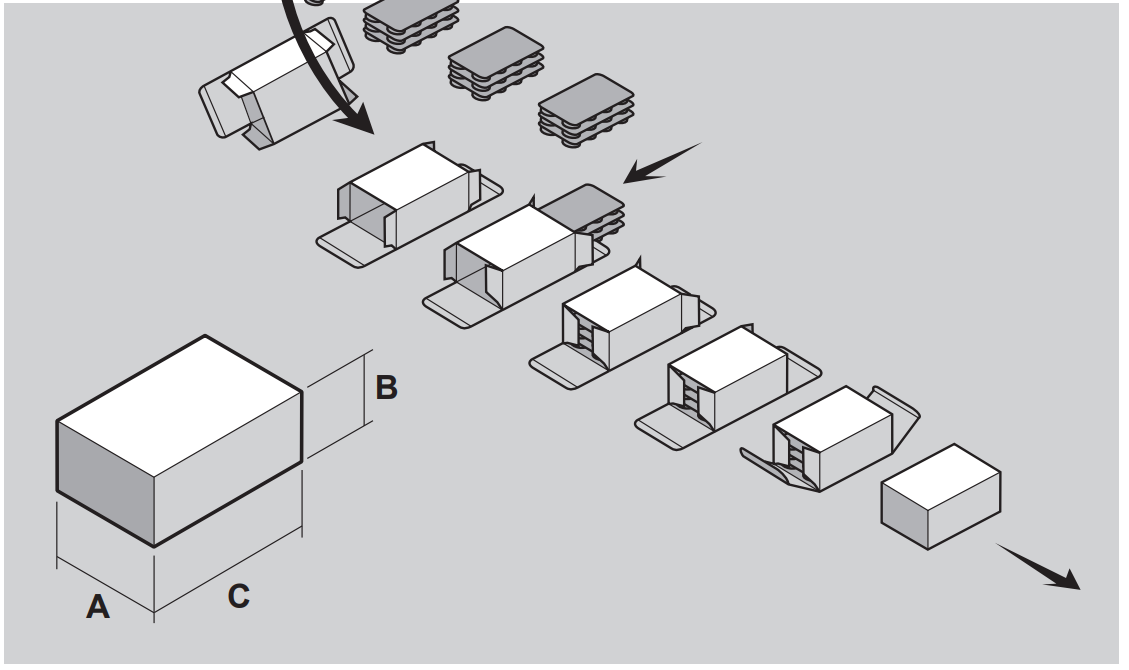

| # | Size range | PMX1 min. | max. | PMX2 min. | max. |
|---|---|---|---|---|---|
| 1 | A | 15 | 80 | 20 | 125 |
| 2 | B | 13 | 75 | 15 | 75 |
| 3 | C | 65 | 200 | 65 | 200 |
| 4 | A+B | – | 170 | – | 170 |
