PG Intermittent motion horizontal cartoner for large size products
TECHNICAL DATA:
• Mechanical speed STROKES/1’ 15÷70 • Motors KW 1.87 • Power absorption KW 2.5 (Hot-melt + 3.9) • Air consumption Nl/1’ 16.9 • Air pressure bar 5÷6 • Gross weight kg ~2300 • Net weight kg ~180

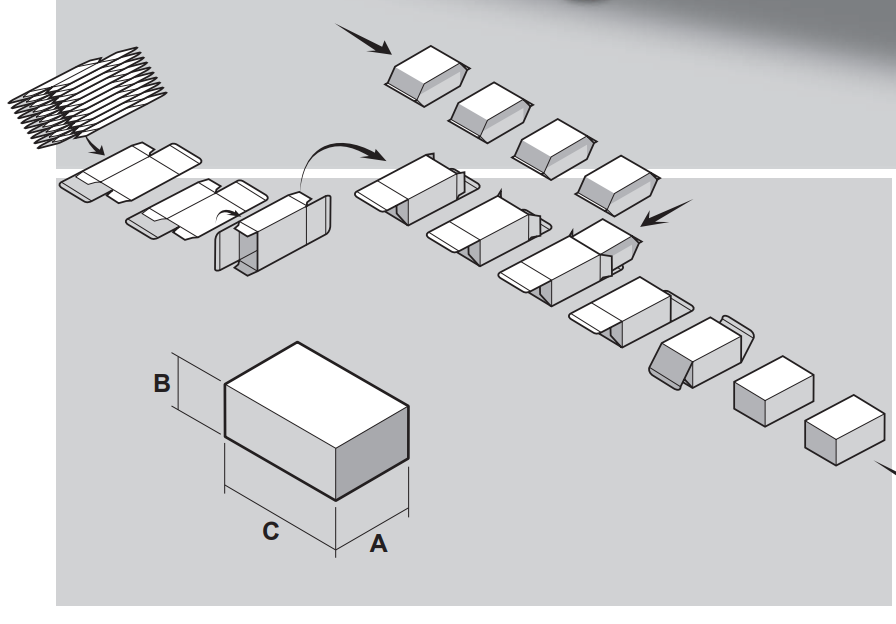

| # | Size range | min. | max. |
|---|---|---|---|
| 1 | A | 20 | 200 |
| 2 | B | 25 | 120 |
| 3 | C | 100 | 300 |
| 4 | A+B | – | 290 |
