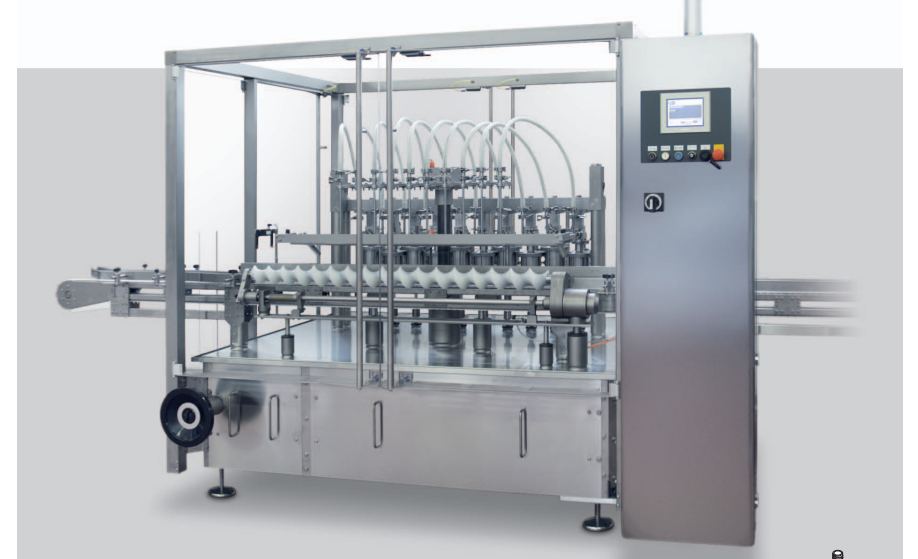

LL Linear intermittent motion filling machine
TECHNICAL DATA:
• Mechanical speed STROKES/1’ 150
• Power absorption (max.) KW 4.5
• Air consumption Nl/1’ 200
• Air pressure bar 5÷6
• Gross weight kg ~1950
• Net weight kg ~1400

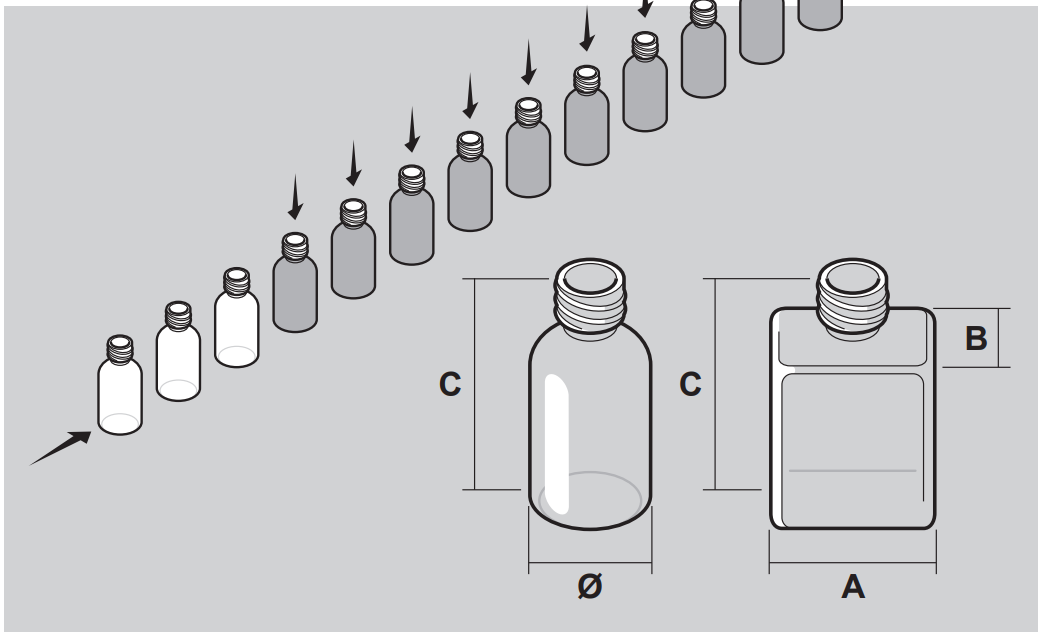

| # | Size range | min. | max. |
|---|---|---|---|
| 1 | A | 20 | 74 |
| 2 | B | 20 | 105 |
| 3 | Ø | 20 | 105 |
| 4 | C | 40 | 180 |
