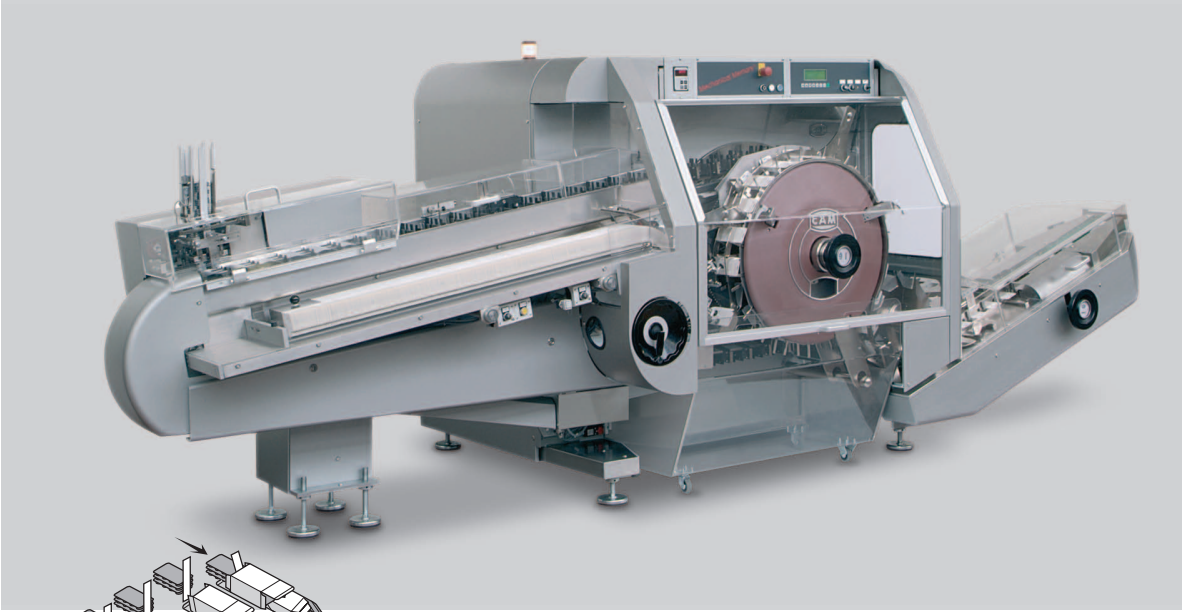

K0 High speed continuous motion horizontal cartoner
TECHNICAL DATA:
• Mechanical speed STROKES/1’ max. 800
• Motors KW 4.25
• Power absorption KW 5.18 (Hot-melt + 3.9)
• Air consumption Nl/1’ 16.9
• Air pressure bar 5÷6
• Gross weight kg ~3100
• Net weight kg ~2900

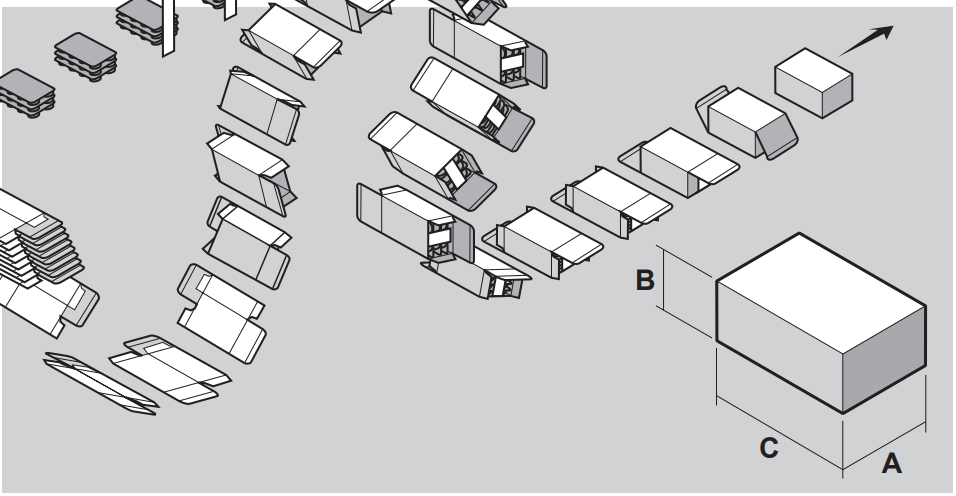

| # | Size range | min. | max. |
|---|---|---|---|
| 1 | A | 35 | 65 |
| 2 | B | 14 | 50 |
| 3 | C | 65 | 130 |
| 4 | A+B | 47 | 115 |
