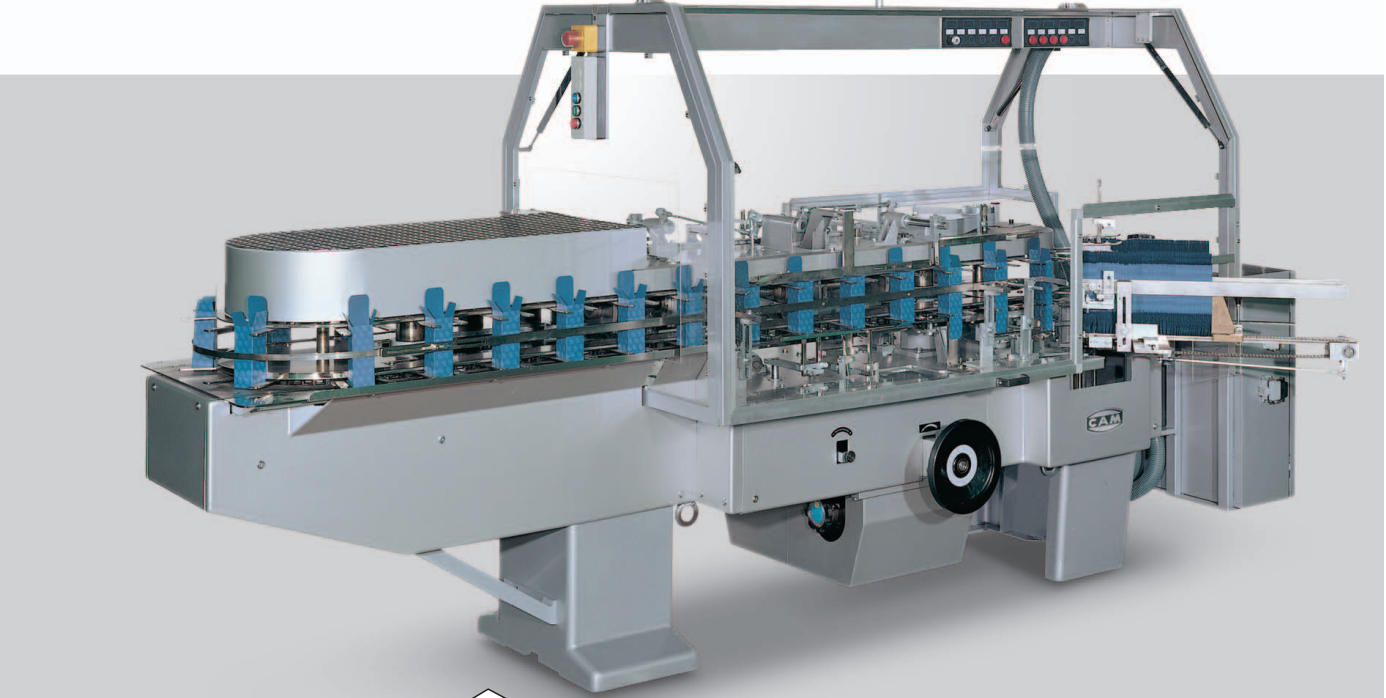

VA Intermittent motion vertical cartoner for manual or automatic feeding
TECHNICAL DATA:
• Mechanical speed STROKES/1’ 15÷70
• Motors KW 1
• Power absorption KW 1.2 (Hot-melt + 3.9)
• Air consumption Nl/1’ 16.9
• Air pressure bar 5÷6
• Gross weight kg ~1650
• Net weight kg ~1200

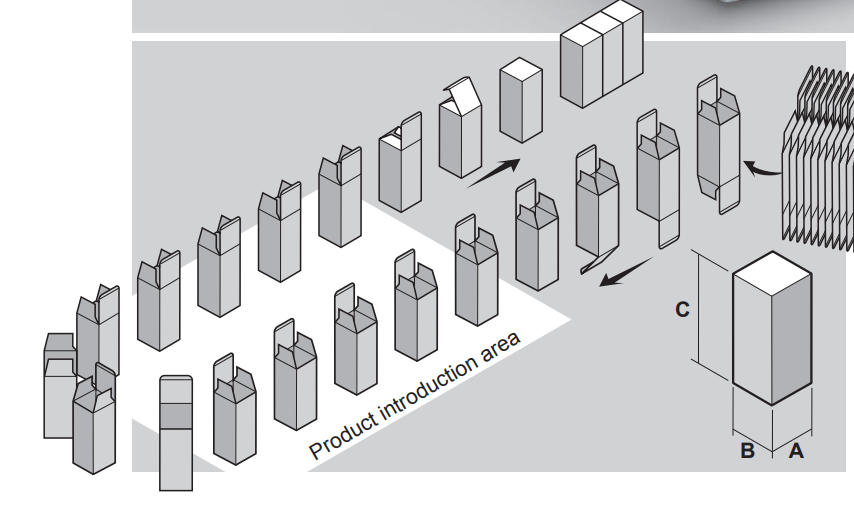

| # | Size range | min. | max. |
|---|---|---|---|
| 1 | A | 20 | 115 |
| 2 | B | 15 | 75 |
| 3 | C | 35 | 200 |
| 4 | A+B | – | 190 |
